JF100

Hand in hand for decades, radiator manufacturers jointly built!

Nickel plated four heat pipe direct contact heat dissipation / PWM + Colour / radium engraving + CNC machining / 2MM beam fastener

Colour : White

Jf100S (Blackened version)

Hand in hand for decades, radiator manufacturers have jointly built; With appearance, performance and details

Product Description
Product Gallery
Technical Parameters
Product Video
Related News
Download

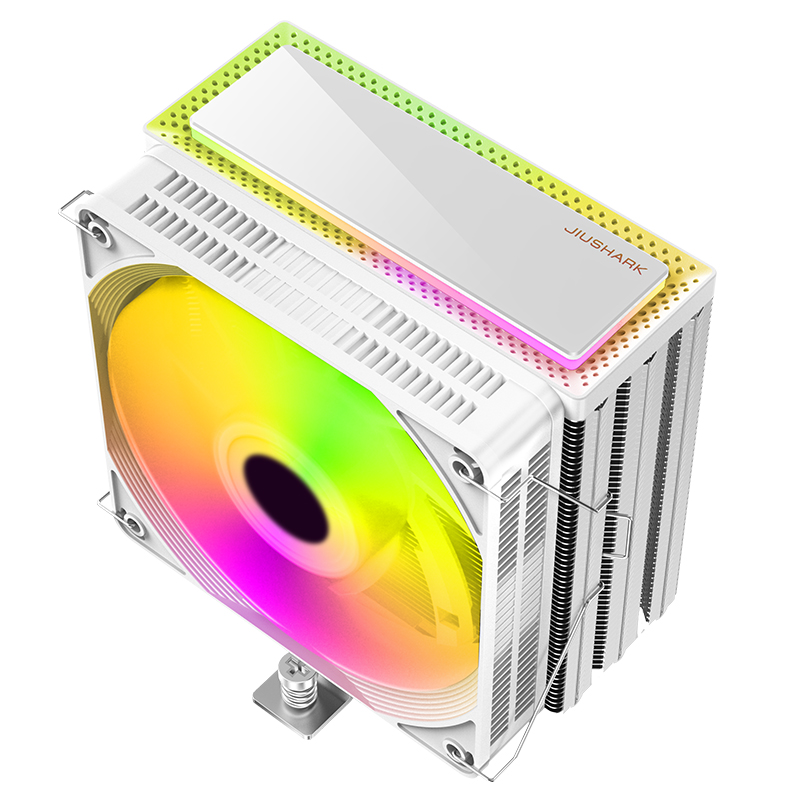

JF100(ARGB/Colour)

Hold hands for decades
Radiator factory jointly built!

Product features

Nickel plated 4 heat pipe direct contact heat dissipation / PWM + ARGB/Colour / radium engraving + CNC / 2MM beam fastener

Product features

Nickel plated 4 heat pipe direct contact heat dissipation / PWM + ARGB/Colour / radium engraving + CNC / 2MM beam fastener

There is value, there is performance, there is detail!

Real data takes you to a new cooling experience!
Young and up to the test!

55 pieces of 0.4 50 128 fins

Single-chip heat dissipation area of 140CM2, cumulative heat dissipation of 7700CM2;
Ultra-traditional radiators more than 25%.

55 pieces of 0.4 50 128 fins

Single-chip heat dissipation area of 140CM2, cumulative heat dissipation of 7700CM2;
Ultra-traditional radiators more than 25%.

Fan design

The design of the nine air guides allows the wind pressure to reach 2.1mmH2O and the weight to reach 175g
ARGB-Speed:1500/min
Air volume:68.4CFM
4-pin pwm motherboard speed control
Colour-Speed:1200/min
Air volume:56.95CFM

Heat dissipation module

The net weight of the heat dissipation module is up to 588g!

Heat dissipation module

The net weight of the heat dissipation module is up to 588g!

Heat pipe direct contact

Uniform heat pipe distribution + complex bending process = heat dispersion and acceleration

The third generation of copper pipe process

Blackened paint heat pipe is oxidation and corrosion resistant, and the process level is higher;
A single heat pipe TDP can reach 65W, about 30% of the ultra-ordinary heat pipe, and the performance is higher

The third generation of copper pipe process

Blackened paint heat pipe is oxidation and corrosion resistant, and the process level is higher;
A single heat pipe TDP can reach 65W, about 30% of the ultra-ordinary heat pipe, and the performance is higher

Heat pipe efficiency has been significantly improved

The cumulative actual TDP of 4 heat pipes can reach 235W

Tempered glass/Metal brushed

2mm thickness tempered glass panel/metal brushed panel without worrying about surface scratches and fingerprint prints

Tempered glass/Metal brushed

2mm thickness tempered glass panel/metal brushed panel without worrying about surface scratches and fingerprint prints

Metal fasteners

The 2mm thickness center runs through the beam type metal fastener, making the ta sit like a bell

Transparent fan

Transparent fan, uniform light efficiency without breakpoint;
Wind guide, softer intake, lower noise!

Transparent fan

Transparent fan, uniform light efficiency without breakpoint;
Wind guide, softer intake, lower noise!

Detail handling

Fine wear Fin process + side 3 buckle Fin link solid overall

Nickel-plated heat pipe + CNC contact surface

Nickel-plated heat pipes never oxidize, and the contact surface CNC finish is smooth and precise

Nickel-plated heat pipe + CNC contact surface

Nickel-plated heat pipes never oxidize, and the contact surface CNC finish is smooth and precise

Do not interfere with memory modules

High and low memory modules are free to install

JF100S

Dual fan blackened version

JF100S

Dual fan blackened version

Product Parameters

Product NameJF100
Product Size128mm(L)*76mm(W)*157mm(H); 128mm(L)*101mm(W)*157mm(H)(JF100S)
Heat sink group size128mm(L)*50mm(W)*150mm(H)(不含頂蓋）
Heat pipe specificationsφ6mm*4Pcs
Fan size120mm(L)*120mm(W)*25mm(H)
Speed of the fan600-1500RPM(±10%)
TDP230W（CPU 11900K實測）/ 240W(JF100S)
Fan air flow26.18-68.4CFM
Fan air pressure0.36-2.05mmH2O
Fan noise20-35.3Dba
Fan terminalPWM 4PIN/ARGB
Bearing typeHydraulic Bearing
Fan rated voltage12V DC
Fan rated current0.35A(MAX)/0.7A(MAX)(JF100S)
Fan power consumption4.2W(MAX)/8.4W(MAX)(JF100S)
Scope of applicationIntel:LGA 1200/115X/1700 AMD:AM4
Net weight770g/912g（JF100S）
